# Working with Containers

{% hint style="success" %}
**Who can use this feature?**

All Squirrel365 plans include the **Container** component.

For more details, see our [**plan comparison matrix**](https://squirrel365.io/pricing/).
{% endhint %}

The purpose of the **Container** is to group several objects into one object. While grouping components will allow them to move across the main canvas as a single unit, the **Container** component is a more versatile way to group components and can act as a 'mini-canvas'.

This guide will not describe the dynamic visibility properties of the container, as these are generic to each component; a separate guide and tutorial on dynamic visibility can be found [**here**](https://squirrel365.gitbook.io/learn/getting-started/dynamic-visibility).

A container is represented on the canvas by a dashed rectangle:

<figure><img src="https://addons.squirrel365.io/learn-assets/uploads/2020/09/container1-150x150.png" alt=""><figcaption></figcaption></figure>

***

### Adding objects to a container

#### Within the Component Tree

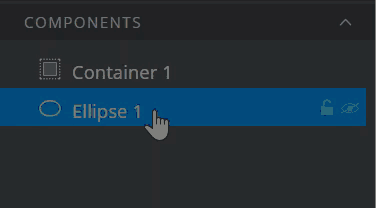

Click on the object that you want to add to the **Container** and drag the mouse cursor until it is positioned over the container object. When a blue bounding box appears around the container object, release the mouse button, and the object will be added to the container object:

![](https://addons.squirrel365.io/learn-assets/uploads/2020/09/container2.gif)

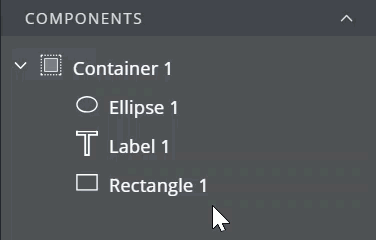

When dragging an object into a **Container** that already contains other objects, the blue bounding box will appear around the container object, but a black line also appears below or above the objects already in the container. This indicates where the object will be placed in the layer stack of the container object:

![](https://addons.squirrel365.io/learn-assets/uploads/2020/09/container3.gif)

####

#### On the Canvas

To add an object to a **Container** on the canvas, select the object with the mouse, hold down the CTRL button (CMD+⌘ Mac), and move the object until it is positioned over the container. The container outline will change to a solid blue border, release the mouse button and the CTRL button:

![](https://911720298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FkLBGzn2hXrIMe50klQCv%2Fuploads%2F1PgPj7DDJENcpmDF4dsT%2FAdding_to_container_on_canvas.gif?alt=media\&token=5d60b1f4-32b3-4af9-bb78-add9cb971526)

***

### Selecting a container or objects inside a container

#### Within the Component Tree

Simply click on the **Container** or its contents to select either.

#### On the Canvas

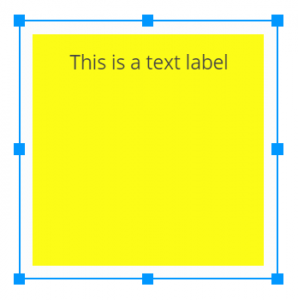

Single-click the **Container** to select it:

![](https://addons.squirrel365.io/learn-assets/uploads/2020/09/container4-298x300.png)

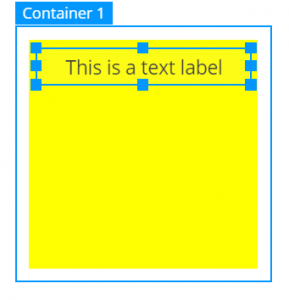

Double-click anywhere on the **Container**; the handles of the selection disappear from the container and a name tab appears at the top. Now single-click any of the objects inside of the container to select.

![](https://addons.squirrel365.io/learn-assets/uploads/2020/09/container5-289x300.png)

Double-click outside of the **Container** (or on an empty area of the container) to deselect items inside of the container or the container itself.

***

### Resizing a **Container**

Set a container’s position, either in the properties panel or by selecting it on the canvas, and adjust its size by grabbing and moving the selection handles.

The container’s size can also be set by binding it to position values contained in the spreadsheet.

{% hint style="info" %}

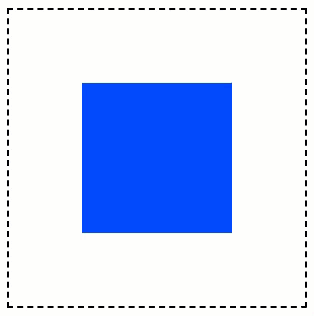

If the size of the container is reduced, objects within that container will not change position or size. They may therefore be hidden from view, or partially hidden:
{% endhint %}

![](https://addons.squirrel365.io/learn-assets/uploads/2020/10/container9.gif)

***

### Repositioning a **Container**

Set a container’s position either in the properties panel or by selecting the container and dragging it with the mouse. It can also be repositioned by binding to position values contained in the spreadsheet.

Objects inside the container will move with the container.

***

### Positioning items inside the container

#### In the Component Tree

When adding an object to a container by dragging and dropping it inside the component tree, the object will be placed into the container at the same position as it was on the canvas i.e. if it was at X position: 10, Y position: 10, it will be container X position 10 and container Y position 10.

{% hint style="info" %}
If an object is dropped into a **Container** but is not visible, likely, its position is likely outside of the bounds of the container. Change the position of the object using the property panel so that it is positioned inside the container, or increase the size of the container until it is large enough to show the object.
{% endhint %}

#### On the Canvas

When dragging objects into the container on the canvas, the objects will be placed at the position where the mouse button is released.

#### Container Clipping

v1.19 introduced the ability to disable clipping of components when they lie outside the bounds of the container they are in. Under the **View** menu, select 'Container Clipping'.

{% hint style="info" %}
'Container Clipping' is only active in **Design Mode**. As soon as you enter Debug or Preview mode, the container clipping will resume and items will now hide when set outside the bounds of the container.
{% endhint %}

<figure><img src="https://911720298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FkLBGzn2hXrIMe50klQCv%2Fuploads%2F8vqHR6g7BRRpA7wzfytJ%2FDisable_container_clipping.gif?alt=media&#x26;token=9e16c329-5dd0-4fbe-98f3-b6f50f4d14bc" alt="" width="563"><figcaption></figcaption></figure>

***

### Removing objects from a **Container**

#### Within the Component Tree

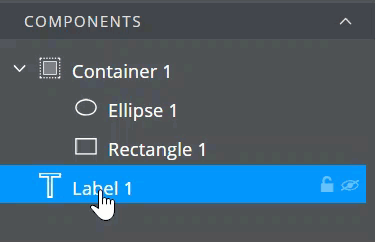

Click and drag the object, either up above the **Container**, or below the last item in the container, until the black line indicates that the object is outside of the container.

![](https://addons.squirrel365.io/learn-assets/uploads/2020/10/container10.gif)

#### On the Canvas

Double-click on any part of the **Container**. A name label will show above the container, and its border will become a solid blue line. Click the object inside the container and hold down the CTRL button (CMD+⌘ Mac) while dragging the object outside of the container bounds. Release the CTRL button (CMD+⌘ Mac) and mouse buttons.

***

### Deleting a **Container** and/or objects from a **Container**

#### Within the Component Tree

Click to select either the container or the object and press the delete key.

#### On the Canvas

To delete a **Container**, single-click to select the container. Press delete.

{% hint style="warning" %}
Deleting a **Container** will delete all of its contents
{% endhint %}

To delete an object inside a **Container**, first double-click the container, then single-click the object. Press delete.
